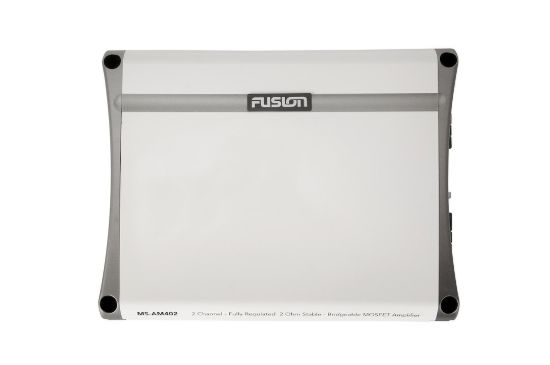

100149900 Fusion Electronics Amplifier

Purpose-built for the marine environment, the AM Series marine amplifiers are designed to enhance your on-water listening experience with quality audio amplification.
The Class-AB design provides high power output with reduced distortion to the connected speakers/subwoofers for an enhanced level of audio performance.
The AM Series amplifiers feature built-in variable bass boost, a subsonic filter and variable low/high pass crossover filters for enhanced performance and system protection.
The AM Series 400-watt 2-channel amplifier can power up to a maximum of two pairs of speakers or one subwoofer.
The AM Series 500 Watt 4-channel amplifier can power up to a maximum of four pairs of speakers or two pairs of speakers and one subwoofer.

• 2 Channel
• 400 Watts Peak Power
• 40 Hertz To 160 Hertz Low-Pass/ 40 Hertz To 600 Hertz High-Pass Crossover Frequency
• 0 dB To 18 dB Bass Boost
• Without Cooling Fan
• 11.65 Inch Length x 9.02 Inch Width x 2.09 Inch Height
• Class AB Amplifier
• 10.8 Volt To 16 Volt DC Operating Voltage
• 25 Amp Current Consumption
• 32 Degree Fahrenheit To 122 Degree Fahrenheit Operating Temperature
• 1 x 25 A ATC Blade-Type Fuse (SAE J1171 Compliant)
• 5k Ohm Nominal Input Impedance
• 65 Watts RMS x 2 @ 4 Ohms
• White
• With Documentation

• Purpose-built for the marine environment, the AM Series marine amplifiers are designed to enhance your on-water listening experience with quality audio amplification.
  The Class-AB design provides high power output with reduced distortion to the con
