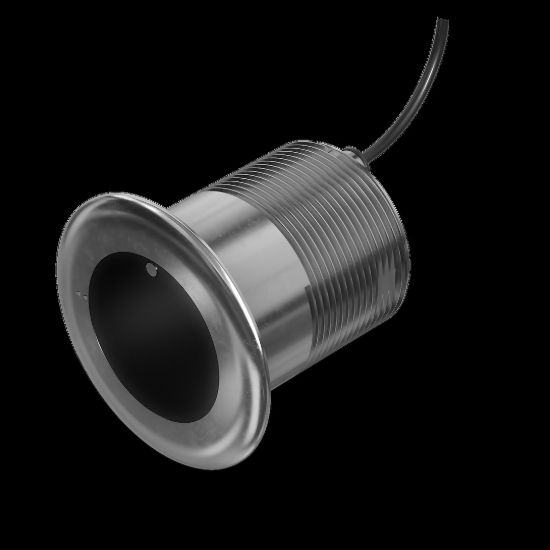

100293000 Garmin Transducer

Use the perfect frequency for the waters you’re fishing.
Covering the medium frequency range, this transducer pulses from 80 to 165 Kilohertz, displaying a wide coverage area, clear fish arches and accurate depth readings.
Offering excellent sonar sensitivity, low noise, high resolution and good separation of targets, this robust transducer makes it easier than ever to distinguish fish and structure on your compatible chartplotter display.
A durable stainless steel housing and stem offer straightforward thru-hull flush mounting for minimum drag and optimum beam orientation for clear sonar returns.
Enjoy simple plug-and-play operation with Garmin auto-identification technology which enables the sonar to automatically configure itself to the transducer being used.
Configurable for a wide variety of boat hull materials, including fiberglass, composite, steel, aluminum and wood, the transducer is available in a range of tilt versions to accommodate deadrise angles of 0 to 24 degrees without a fairing block.

• Thru-Hull Mount With 0 Degree Tilted Element
• 8 Pin
• 1800 Foot Saltwater/ 2400 Foot Freshwater Maximum Depth
• 80 To 165 kHz Medium Band CHIRP Frequency
• 0 To 7 Degree Deadrise Angle
• 1 Kilowatt Power
• 50 Foot Cable
• RapridReturnâ„¢ Sonar Compatible
• 9 To 18 Degree Beamwidth
• Stainless Steel Housing
• With Jam Nut/ Spacer/ 2 Washers/ 2 Set Screws/ Thread Isolator/ Hull Isolator
• For Depth/ Temperature

• Use the perfect frequency for the waters you’re fishing.
  Covering the medium frequency range, this transducer pulses from 80 to 165 Kilohertz, displaying a wide coverage area, clear fish arches and accurate depth readings.
  Offering excellent so
