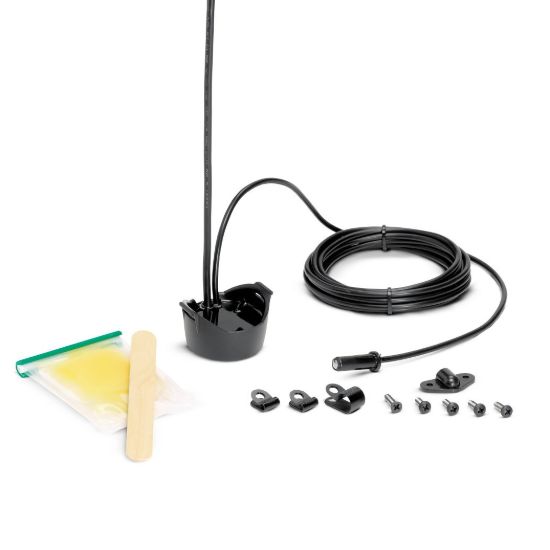

7102761 Humminbird Transducer

Humminbird has built its reputation by designing and manufacturing top quality, thoroughly reliable marine equipment.
Your Humminbird is designed for trouble-free use in even the harshest marine environment.
We encourage you to read this manual carefully in order to get the full benefit from all the features and applications of your Humminbird product.

• Hull Mount
• 7 Pin
• 1200 Feet Maximum Depth
• 150/ 220 kHz Full Dual Spectrum CHIRP Frequency
• 15 Feet Cable
• With Built In Temperature Sensor/ Temperature Probe On 7 Pin Plug/ 20 Feet Cable
• Compatible With HELIX 5 CHIRP G2/ G3 GPS-Equipped Models Only, HELIX 7 CHIRP G2/ G3/ G4 GPS-Equipped And CHIRP DI G2 Models, HELIX 7 CHIRP G2N/ G3N/ G4N All Models, HELIX 8 CHIRP G3N/ G4N All Models, HELIX 9 CHIRP G2N/ G3N/ G4N All Models, HELIX 10 CHIRP G2N/ G3N/ G4N All Models, HELIX 12 CHIRP G2N/ G3N/ G4N All Models, ICE HELIX CHIRP G2/ G3 And Newer All Models (In Open Water Mode) Side Imagingâ„¢ And Down Imagingâ„¢ Units Can Support This Transducer As A 2D Sonar Only Transducer

• Humminbird has built its reputation by designing and manufacturing top quality, thoroughly reliable marine equipment.
  Your Humminbird is designed for trouble-free use in even the harshest marine environment.
  We encourage you to read this manual
